Hypothermia Prevention & Management Kit - Insulated (HPMK-I)

Building on the success of the CoTCCC recommended HPMK, the new patent-pending HPMK-I (Insulated) with reinforced Heat Reflective Shell - Insulated is strong, flexible, lightweight, and impervious to wind and rain, now fully insulated to meet new CoTCCC guidelines. The HRS-I, the kit's ruggedized outer shell, is constructed of a 5-ply composite fabric with a protected non-conductive reflective layer and a NEW insulation layer that provides additional excellent thermal retention. Rapid 360° access to the casualty with minimal exposure to the elements is achieved through the use of continuous 1.5-inch hook and loop closures located along the perimeter of the covering.

The HRS-I also features an INSULATED top-to-bottom tapered shape to maximize isothermal capabilities. The heat-generating source of the HPMK-I is a self-heating, oxygen-activated 4-Panel Ready Heat 4 blanket designed to sustain up to 10 hours of continuous dry heat (no external power supply required). This compact package is vacuum-packaged in a rugged, flexible pouch.

The new top and bottom insulation layers exceed the insulation value of the Army Module Sleep System Patrol Bag. This insulation is highly compressible but also has excellent rebound after opening. The added insulation is also hydrophobic and will not retain fluids or additional liquid weight.

Specs

  • Building on the success of the CoTCCC recommended HPMK, the new patent-pending design includes a new insulation layer added to the front and back of the entire patient.
  • This solution provides 10 hours of continuous dry heat thanks to an oxygen-activated, self-heating 4-panel Ready Heat blanket (no external power supply required).
  • The product is made of 5-ply composite fabric with a protected non-conductive reflective layer and a new insulation layer for improved thermal retention. It maintains its insulating properties even when wet.
  • Despite the high level of insulation, the product has a very small final packaging size.

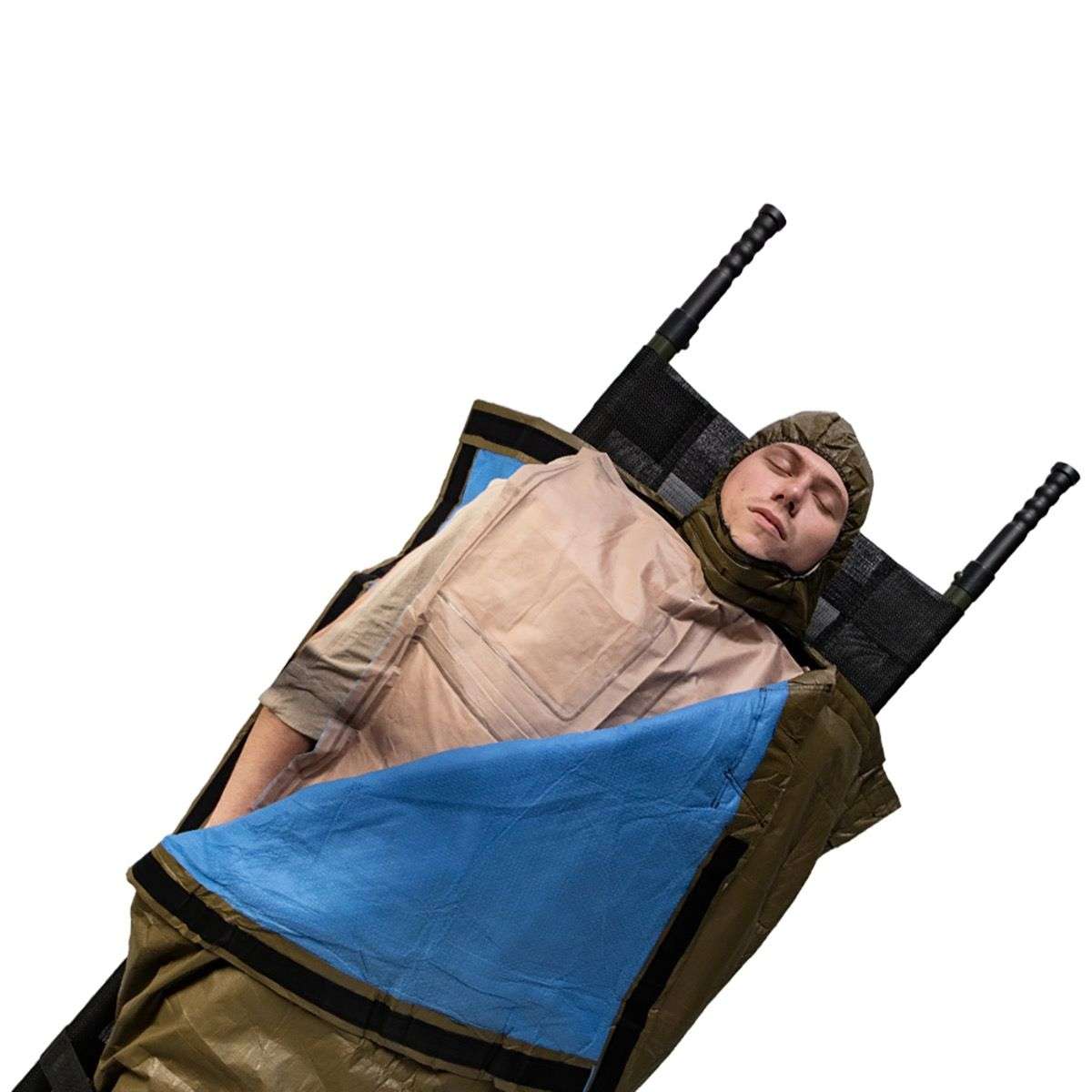

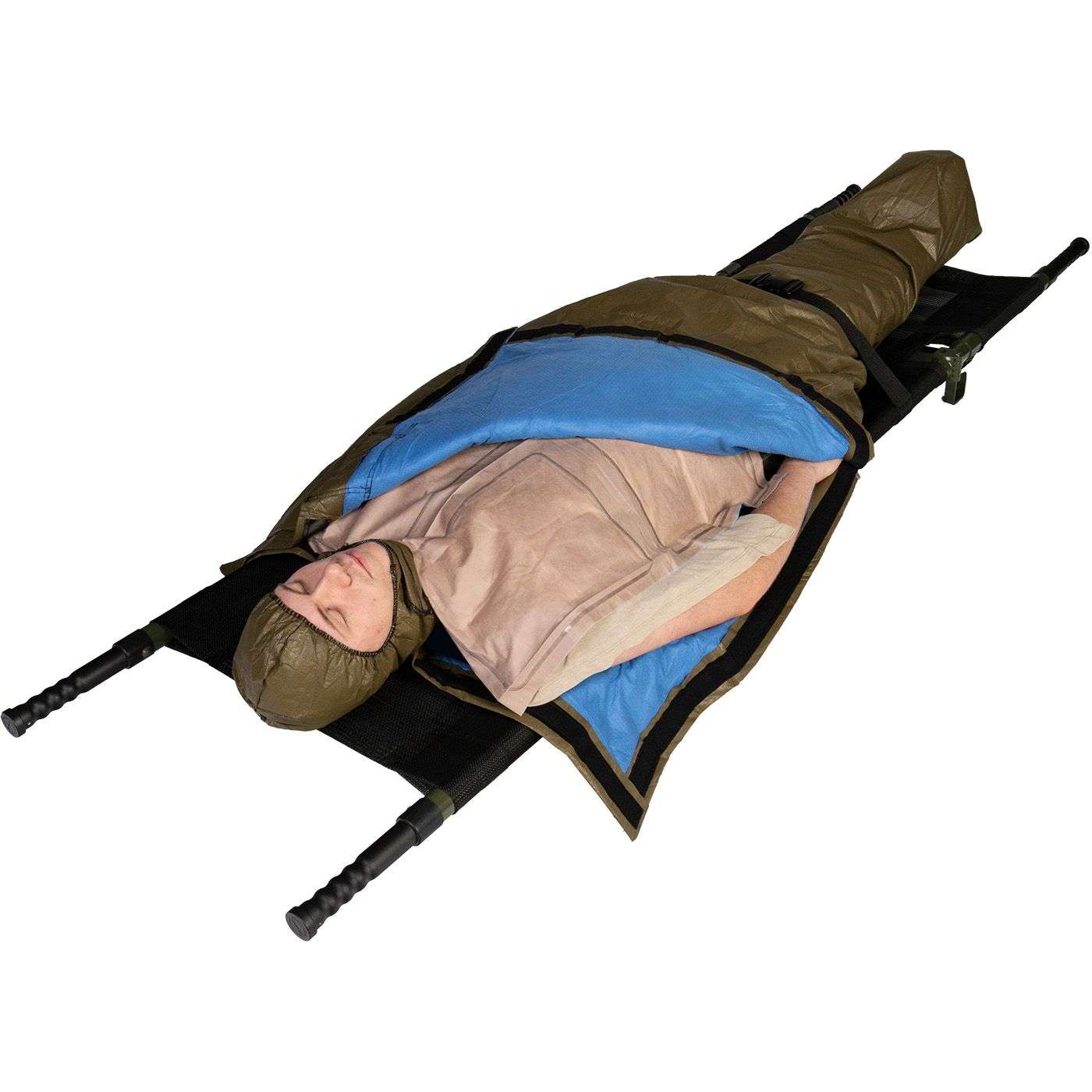

  • It has a tapered shape from top to bottom to maximize isothermal capabilities, including a built-in hood and continuous 1.5-inch Velcro closures for rapid 360° access to the casualty with minimal exposure to the elements.

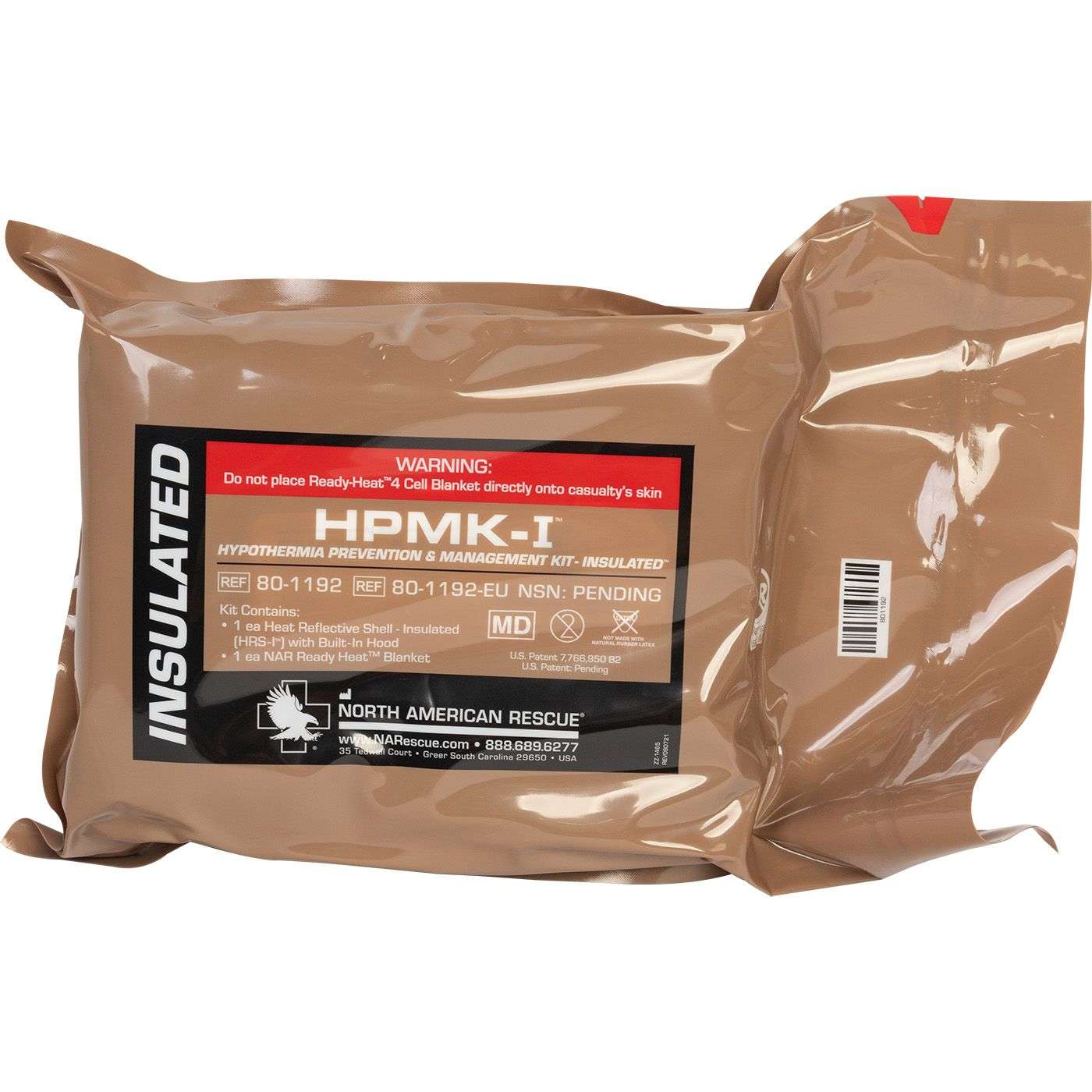

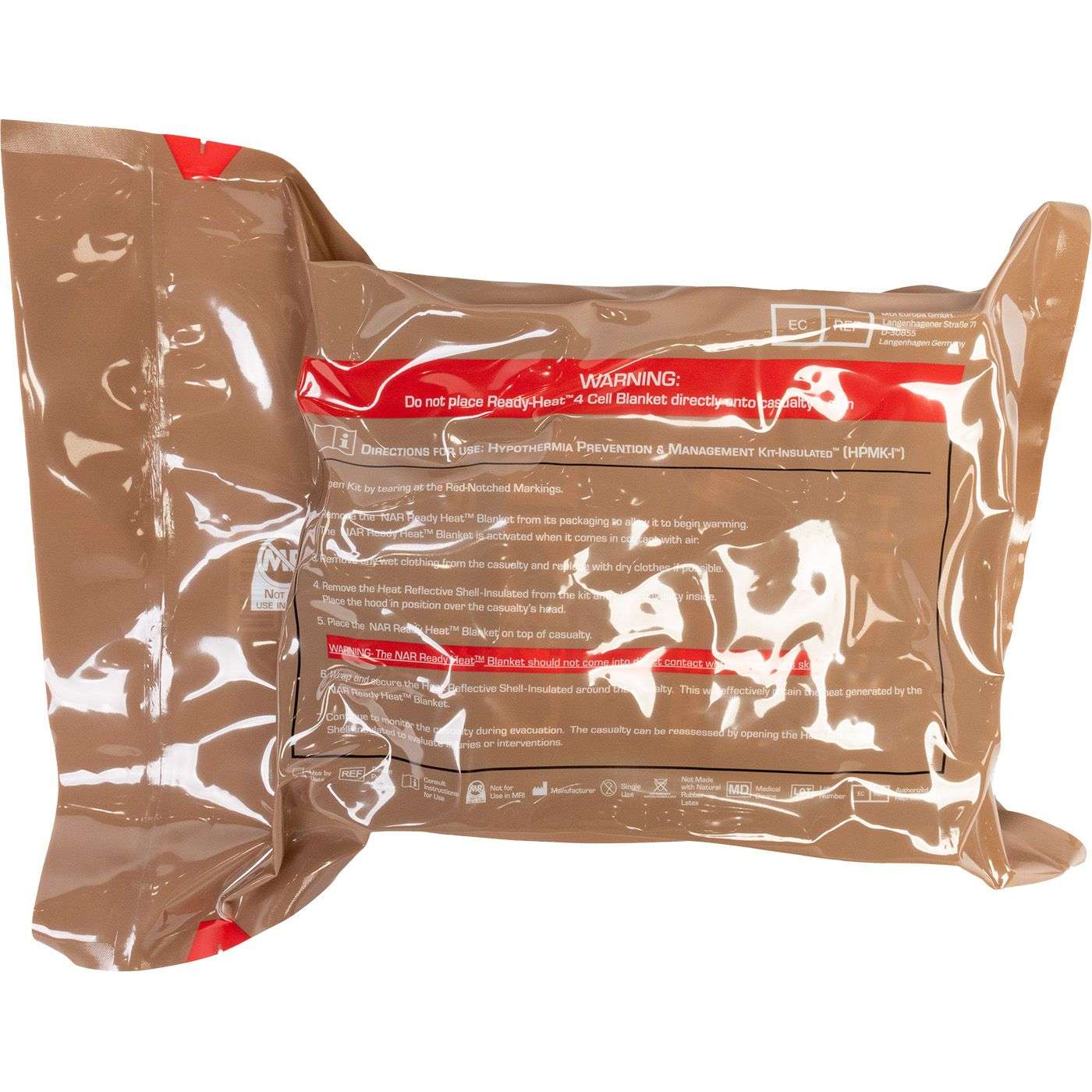

  • The product is reinforced and weight tested to support over 250+ pounds. It is vacuum-packaged in a durable low-profile pouch for protection and storage.

Kit Contents:

1 x Heat Reflective Shell-Insulated (HRS-I™) with built-in hood

1 x Ready Heat 4 Panel Blanket

1 x Plastic Packaging Bag

Dimensions:

Packaged - H 8 inches x W 11 inches x D 6 inches

Weight: 4 lbs 14 oz Heat Reflective Shell-Insulated (HRS-I™)

(Open): L 78 inches x W 43 inches

Article Number: 80-1192
